RIP large current bushing


  • Product Item：FPBRW
  • Rated voltage: 12KV-42.5KV
  • Rated current:6300A-40000A
  • Partial discharge at Um (pC): ≤10
  • Test tap insulation test (KV): 2
    • resin impregnated paper bushings  , RIP bushings  , high voltage bushings  , dry type of large current bushings
    Inquiry Send Email

    Description

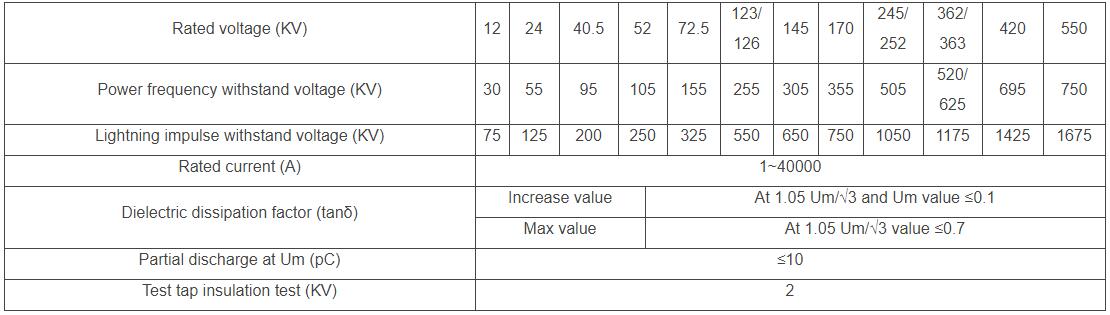

    RIP Condenser Dry-Type Large Current  Bushing Electrical specification

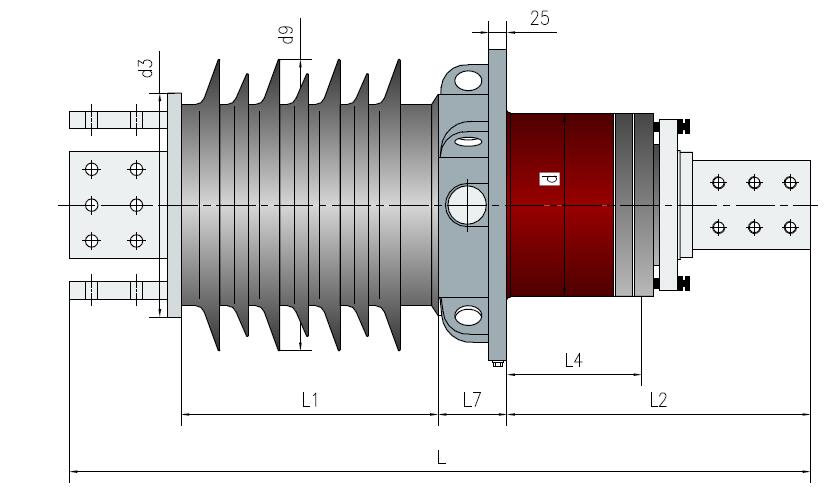

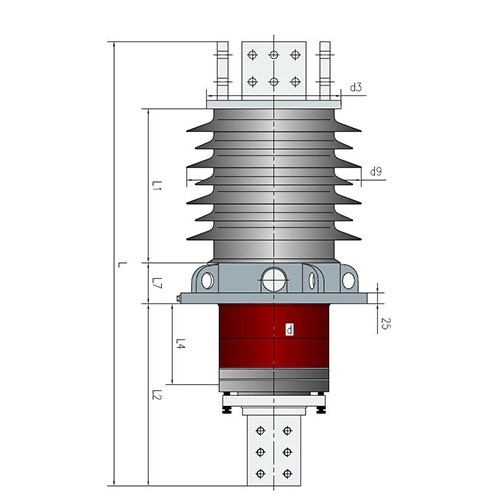

    Structure

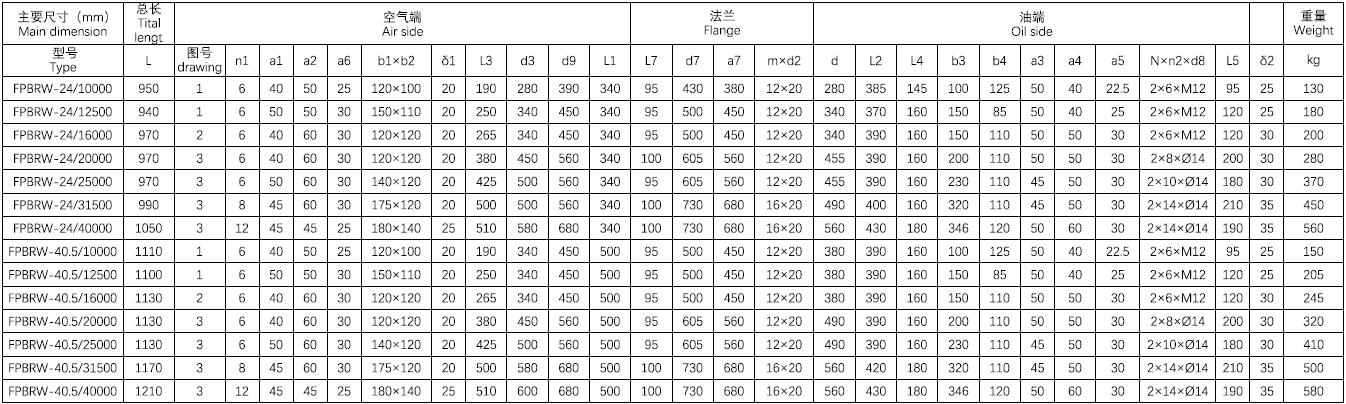

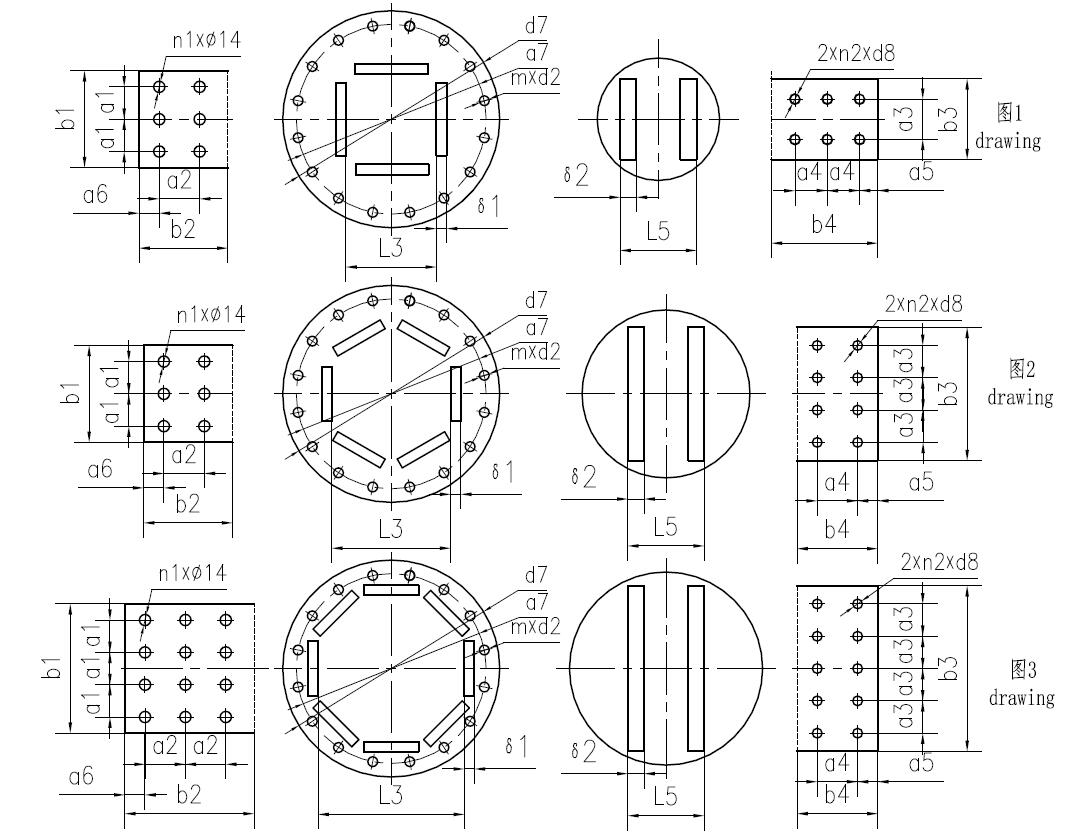

    Dimension


    Note: The dimension in the catalog is the recommended value, we also provide custom design service.
