RIP wall bushing


  • Product Item:FPCRW
  • AC voltage: 12KV-1100KV
  • AC current: 630A-8000A
  • DC voltage: ±50KV-±800KV
  • DC current: 2000A-6250A
  • resin impregnated paper bushings  , RIP bushings  , high voltage bushings  , dry type of wall bushings
    Inquiry Send Email

    Description

    RIP Condenser Dry-Type Wall Bushing Electrical specification

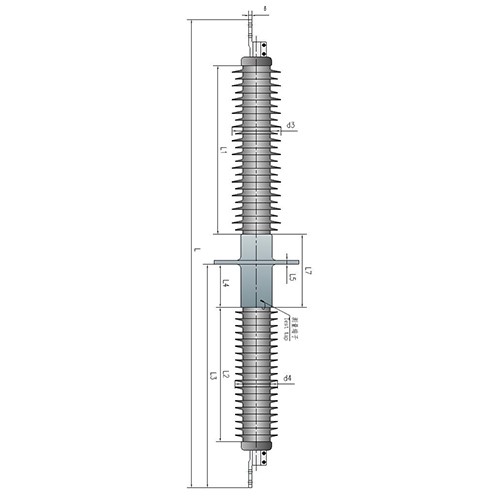

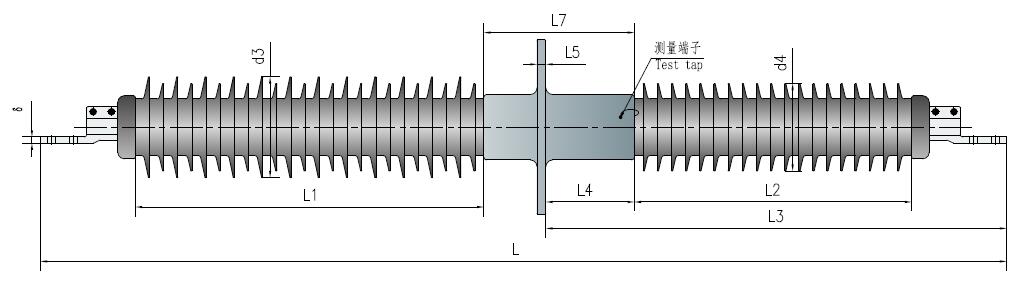

    Structure

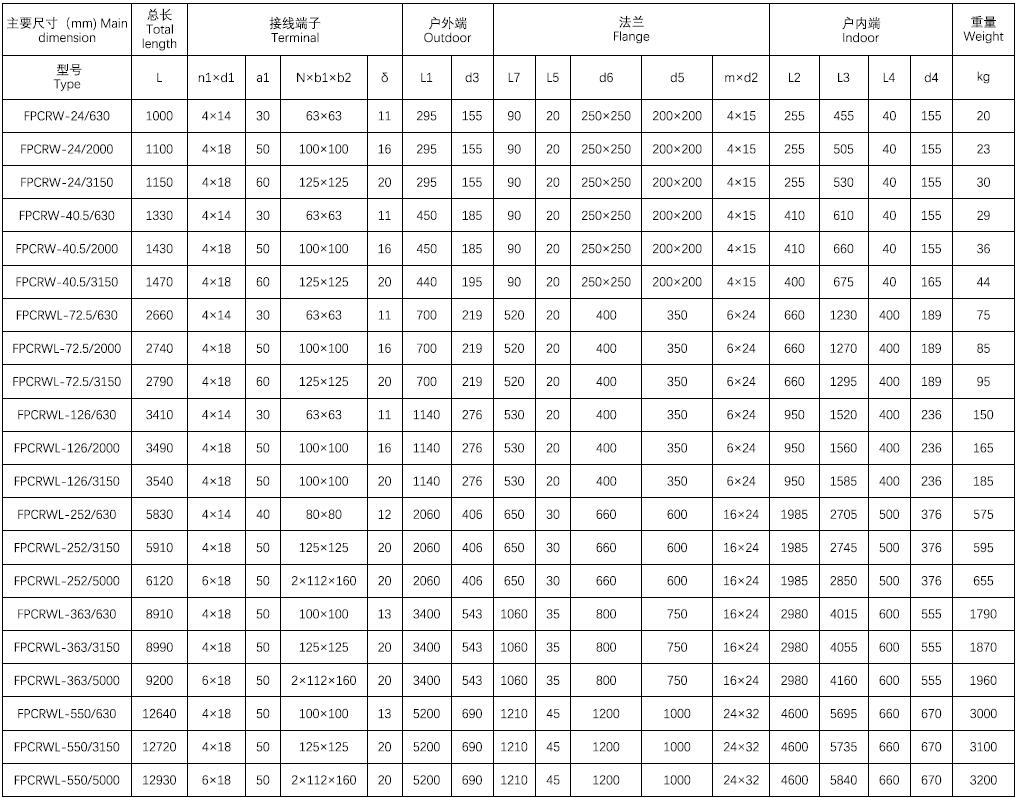

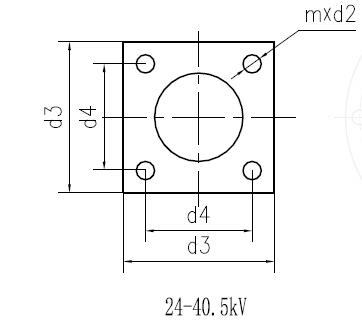

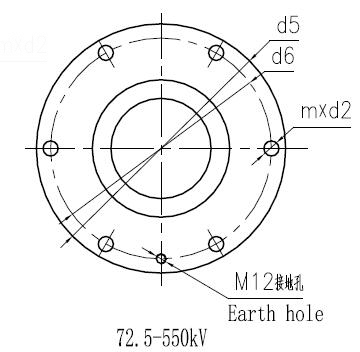

    Dimension



    Note: All product sizes can be customized to meet a customer's specific requirements.
