RIP Oil/Oil bushing


  • Product Item：PORWL
  • Rated voltage: 72.5KV-550KV
  • Rated current: 630A-8000A
  • Partial discharge at Um (pC): ≤10
  • Test tap insulation test (KV): 2
    • resin impregnated paper bushings  , RIP bushings  , high voltage bushings  , dry type of Oil Oil bushings
    Inquiry Send Email

    Description

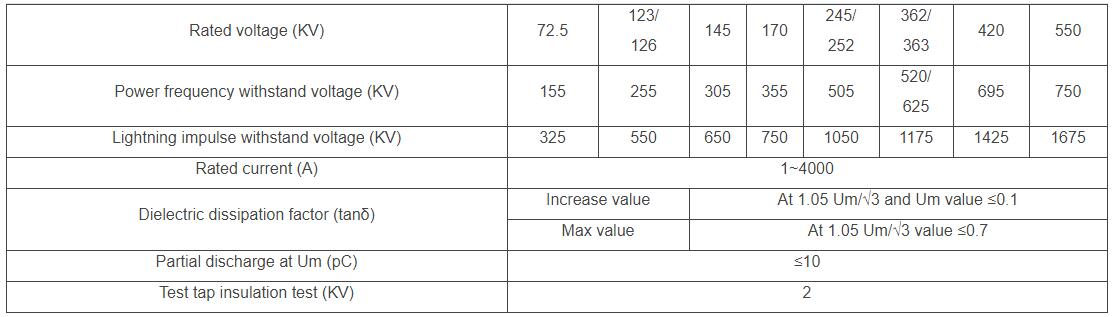

    RIP Condenser Dry-Type Oil/Oil Bushing Electrical specification

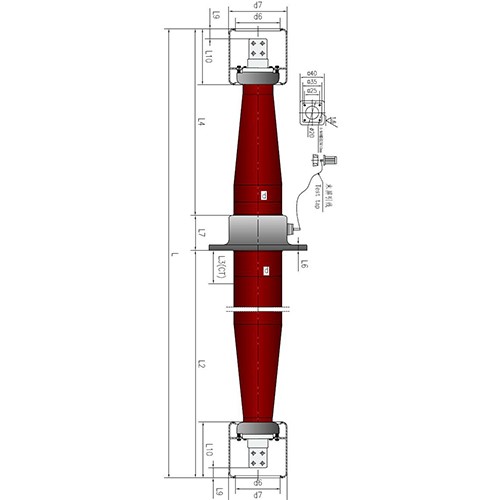

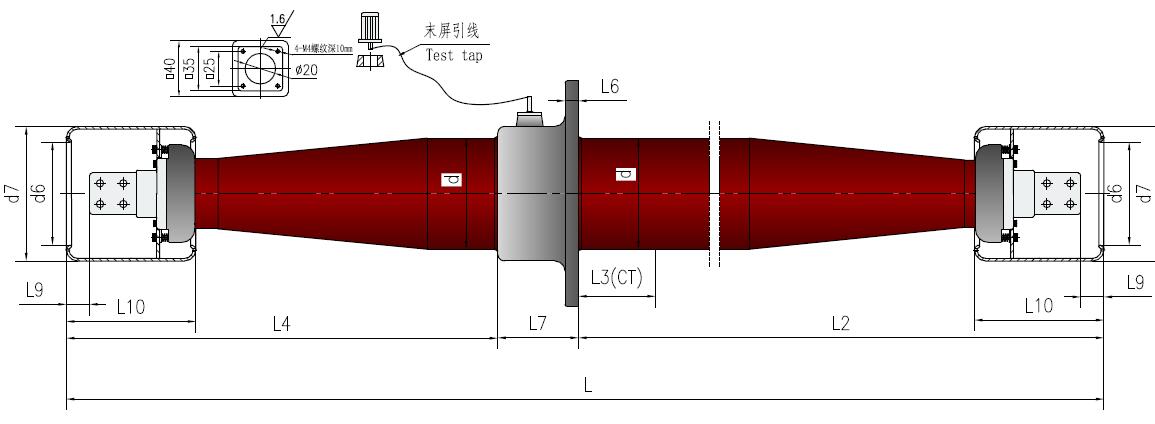

    Structure

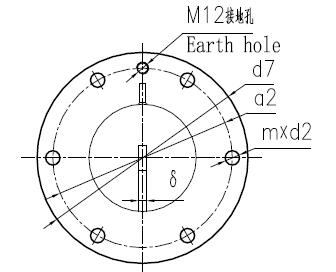

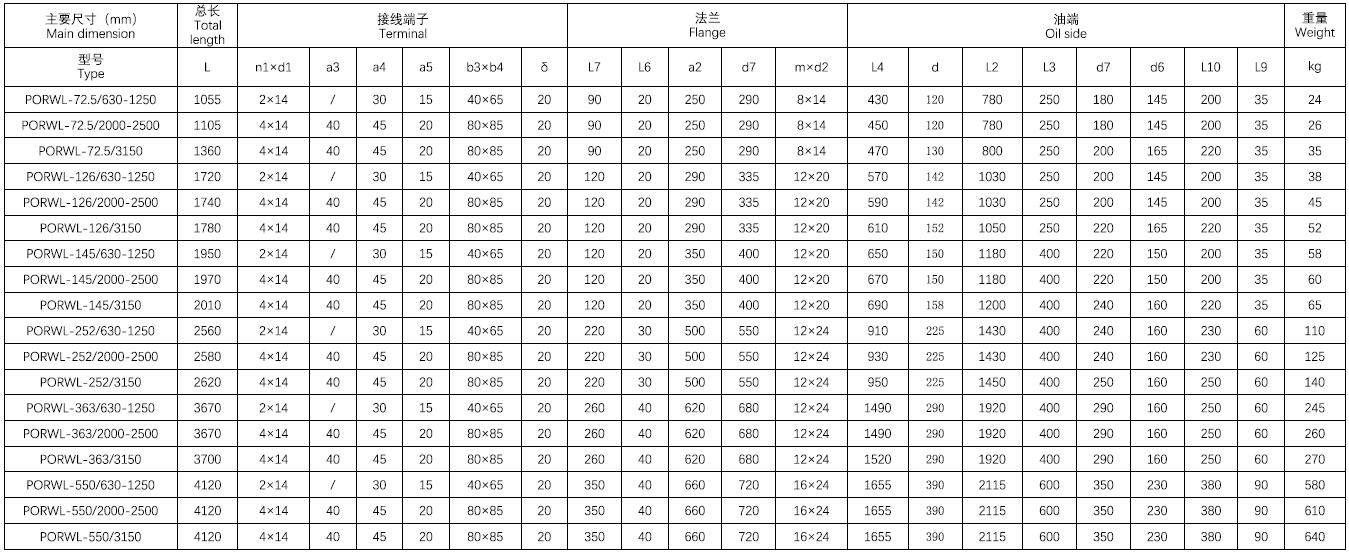

    Dimension


    Note: All product sizes can be customized to meet a customer's specific requirements.
