RIF/RIS Oil/SF6 bushing


  • Product Item：EOGRWL
  • Rated voltage: 40.5KV-800KV
  • Rated current: 630A-5000A
  • Partial discharge at 1.2Um/√3 (pC): ≤5
  • Test tap insulation test (KV): 2
    • resin impregnated fiber bushings  , RIF bushings  , high voltage bushings  , dry type of Oil SF6 bushings
    Inquiry Send Email

    Description

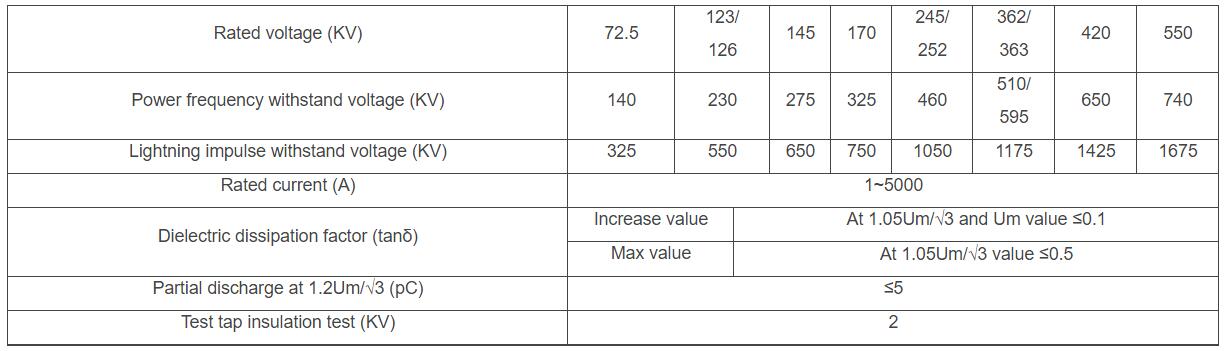

    RIF Condenser Dry-Type Oil/SF6 Bushing Electrical specification

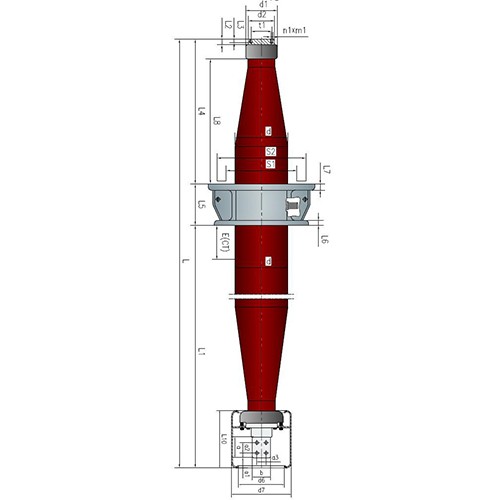

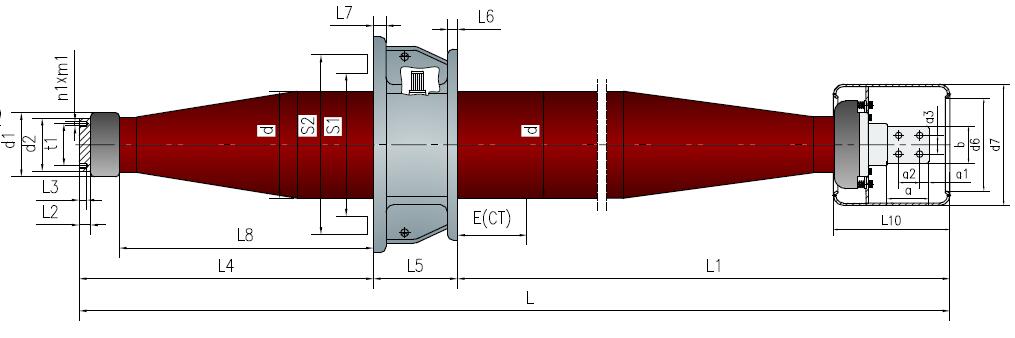

    Structure

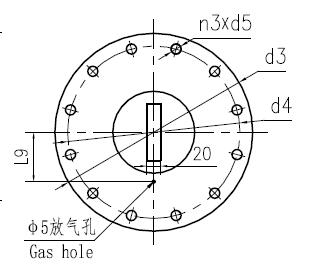

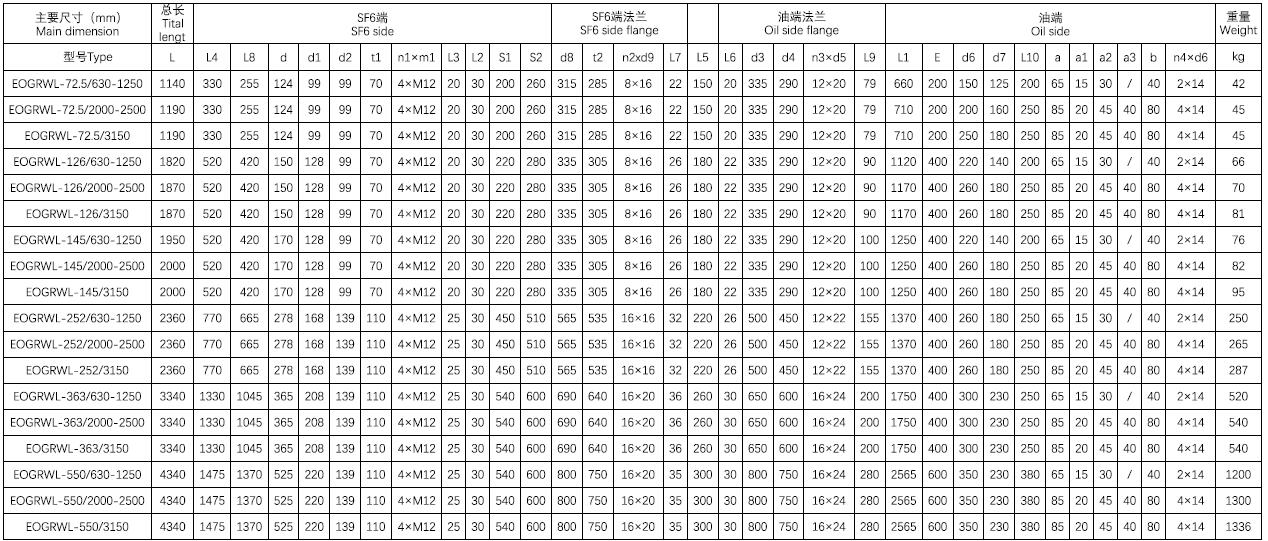

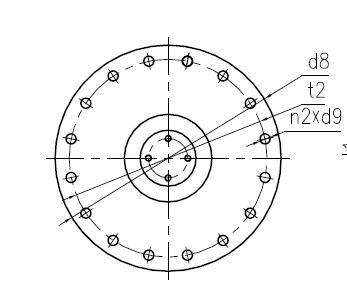

    Dimension


    Note: All product sizes can be customized to meet a customer's specific requirements.
